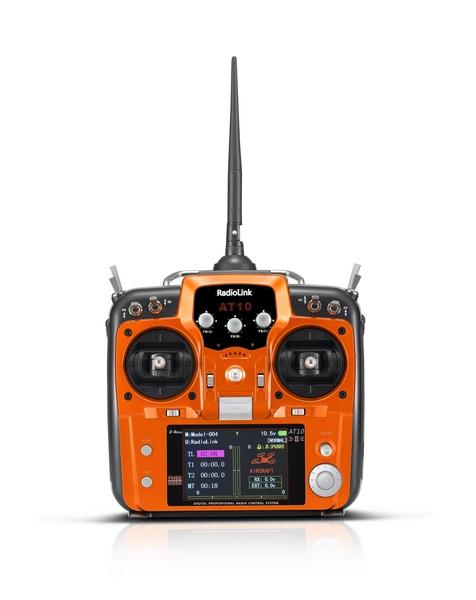

Radiolink AT10II 2.4G 12CH Transmitter w/ R12DS Receiver

Features

• Real-time data telemetry
• Sbus, ppm and pwm support
• Anti-polarity connect protection intelligent
• Programmable mix control
• USB upgrade
• Multitype alarm

Specifications

• Size: AT10II-180*95*220mm, R12DS-50*32*15mm
• Weight; 0.95kg
• Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz)
• Modulation mode; QPSK
• Channel bandwidth; 5.0 MHz
• Spread spectrum: DSSS&FHSS
• Adjacent channel rejection: >38dbm
• Transmitter power; <100mW (20dbm )
• Operating current; <105mA
• Operating voltage: 7.4-15.0V
• Control distance: up to 4km, the actual control distance depends on the flying environment
• Channel; 12 channels, 5-12 channels are customized
• Compatible model: all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multirotor
• Simulator mode: under the simulator mode the transmitter action turns off, changes to power saving mode
• Screen: 3.5 inches 16 colorful screen, 320*480 pixels
• Support receivers: sells with R12DS (SBUS&PWM), compatible with R6DS,R6DSM,R9DS,R12DS
• Dsss and fhss spread spectrum
• More stabilized, faster
• Low consumption of battery

R12DS Receiver Sepcifications

• Dimensions: 50 * 32 * 14.5mm
• Weight: 14g
• Channels: 11 channels for PWM signal output, 12 channels for SBUS&PWM signal output
• Signals: PWM/SBUS/PWM
• Operating Voltage: 3-10V
• Operating Current: 38-45A @ 5V
• Section Precision: 4096, 0.25us per section
• Control Distance: 4000meters in the air, the max range tested in unobscured areas free of interference and may vary depending on local conditions
