Balsa Usa Fokker Eindecker 90 Kit 80 Sp. .46/.61

$509.00
SKU BUSA417
Add to Wishlist

Notify me when back in stock

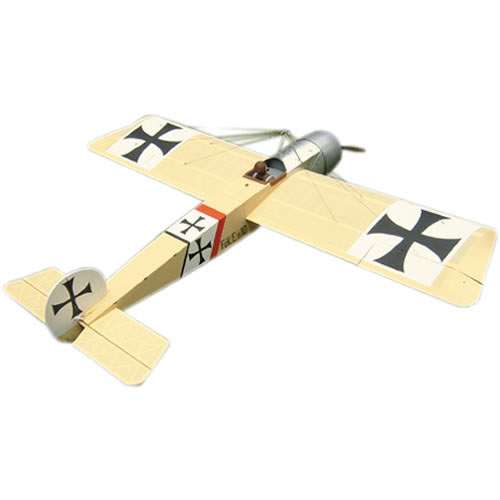

BALSA USA KIT No 417 FOKKER E.III EINDECKER 90

The actual aircraft responsible for the Fokker Scourge! Our model is accurate in outline, but has been modernized. Sorry guys, we cheated, there is no wing warping, the model has ailerons and a real airfoil is included at no extra charge! Now the preferred mount of Oswald Boelcke, Max Immelmann and many of the First World War's early German Aces can be yours.

The wing construction uses a unique 'egg crate" type of assembly. Here the ribs lock onto a full length die-cut shear length web for perfect alignment. The main spars are pre-slotted and this shear web/rib assembly locks into these slots top and bottom. This greatly increases the strength and simplicity of the wing construction without any weight penalty.

The fuselage features die-cut fuselage sides and doubles for ease of construction. The fuselage is not a difficult to build "stick box'.

The Eindecker is very easy to build and you won't spend hours rigging it up at the flying field.

Just plug in the aileron servos, bolt on the wing and you are ready to go flying. The flying qualities of the Eindecker are smooth and easy.

Lazy aerobatics are this Fokker's forte. Practice some Immelmanns in the aircraft that invented them! Savour the flavour and fun of this very early aero plane the easy way!

Specifications:

  • Wing Span: 80 inches
  • Wing Area: 1155 sq in
  • Wing Loading: 16oz/sq.ft.
  • Flying Weight:7-1/2 to 8lbs
  • Fuselage Length: 56-1/2 inches
  • Engine Size: .46-.60 2-stroke or .61-.91 4-stroke (not included)
  • Cowl Diameter: 7-3/8 inches

Kit Features:

  • Full sized rolled plans and instructions
  • Jig and diecut parts
  • Pre-bent wire landing gear
  • Basic Hardware Package
  • Removable "l-piece" bolt on wings
  • ABS plastic cowl



  • Center of Gravity: 4-1/8 inches back from the leading edge of the Wing.
  • Control Throws:
  • Elevator: 1 inch up and down.
  • Rudder: 2 inch left and right.
  • Ailerons: 3/4 inch up and down.
  • Aileron Differential: 1 inch up and 3/4 inch down (differential recommended).
  • Engine Thrust Line: 1-2 Degrees DOWN, 1 Degree RIGHT.









  • Our shipping times are typically 24-48hrs from ordering during normal business hours.
  • We use a Courier and Australia post as our agents.  Please allow typical delivery times for your area.
  • International shipping is priced per country, please check your cart before ordering.
  • We are unable to ship Dangerous goods overseas.
  • We are also limited by length of some parcels. Anything over 1.05m will need a specialist courier quote which we can provide.
  • When adding items to your cart you can get a quote for shipping first before commiting to the order.
