Balsa Usa 1/6 Thomas-Morse S-4C Kit 53Ws

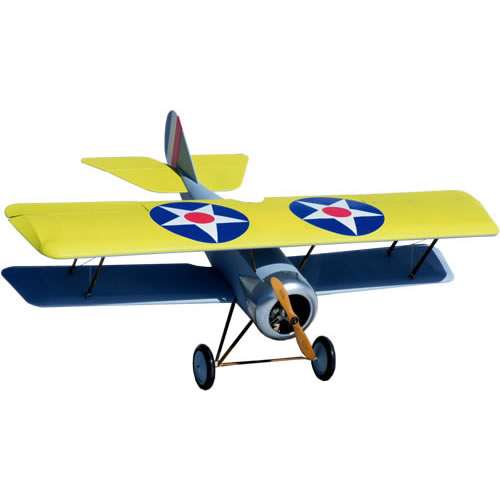

BALSA USA KIT No. 414 1/6 SCALE THOMAS MORSE  S-4C SCOUT

Built by the Thomas-Morse Aircraft Corporation located in Ithaca, NY, the Thomas Morse S-4C Scout affectionately known as "Tommy" by the men who flew it, is probably best known American built single seat aircraft of the First World War.

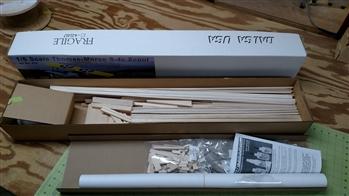

Kit Features

• Quality AAA Balsa
• Aircraft Quality Plywood
• All Wood Construction
• Precision Jig-Cut Parts
• Step-by-step Photo Illustrated Instructions
• Full-Size Rolled Plans
• Fall-Out^TM Die Cut Parts
• Molded ABS Plastic Cowl
• Pre-Bent Landing Gear
• Name Brand Complete Hardware Package

Specifications

• Wing Span: 53 inches
• Wing Area: 1 016 sq. in.
• Flying Weight: 6-7 lbs
• Fuselage Length: 40 3/8 inches
• Wing Loading: 13-16 oz./sq. ft.
• Engine Size: .40-.45 4-Stroke Glow

Center of Gravity: 3-5/8 inches back from the leading edge of the Top Wing.

Control Throws:
Elevator: 1-1/2 inches up and down.
Rudder: 2 inches left and right.
Ailerons: 1 inch up and down.
Aileron Differential: 1 inch up and 1/2 inch down (differential recommended).

Incidence:
Top Wing: +1 Degree.
Bottom Wing: -1-0.0 Degrees.
Tail: 0.0 Degrees.
Engine Thrust Line: 1-2 Degrees DOWN, 1 Degree RIGHT.

• 18400 1/6 Scale Wms. Bros. Sportsman Pilot
• 486 1/6 Scale Du-Bro Vintage Wheels 4.66"
• 674 Du-Bro 8oz. Fuel Tank
• D414 Vinyl Decals - Roundels
• Solartex: (1)-5m roll
