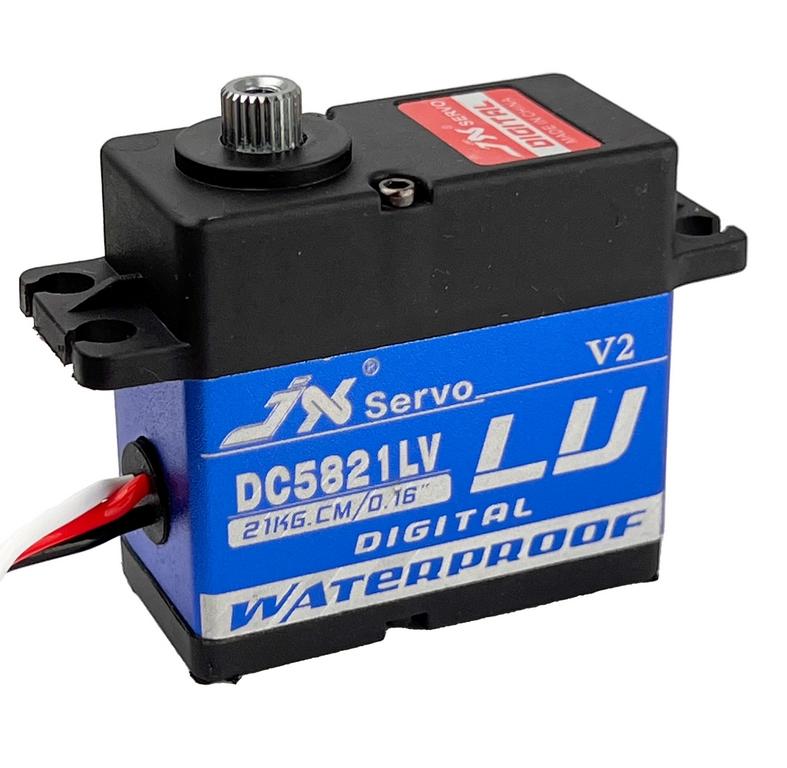

JX Servo 21.8Kg .16 sec 6V Waterproof 2BB 58g 40.5x20.2x38 mm Hi Torq

JX Servo 21.8Kg .16 sec 6V Waterproof 2BB 58g 40.5x20.2x38 mm Hi Torq

By JX SERVO
$36.49
SKU JX5821

Notify me when back in stock

DC5821LV 20KG Full waterproof digital high quality servo

FEATURE：
-----CNC metal On the cover In the shell
-----High-precision Taiwan-made aluminium gears with hard anodizing



SPECIFICATIONS：
Dead band： 2μs
Working frequence： 1520μs / 330hz
Motor： Core
Operating Speed4.8v 0.18 sec/60°
Operating Speed6.0v 0.16 sec/60°
Stall Torque 4.8v 16.5 kg.cm
Stall Torque 6.0v 21.8 kg.cm
Dimensions： 40.5X20.2X38mm
Weight： 58 g
Wire/Color： JR 265 mm/ -Brown +Red S Orange
Bearing： 2BB
