FEATURE:

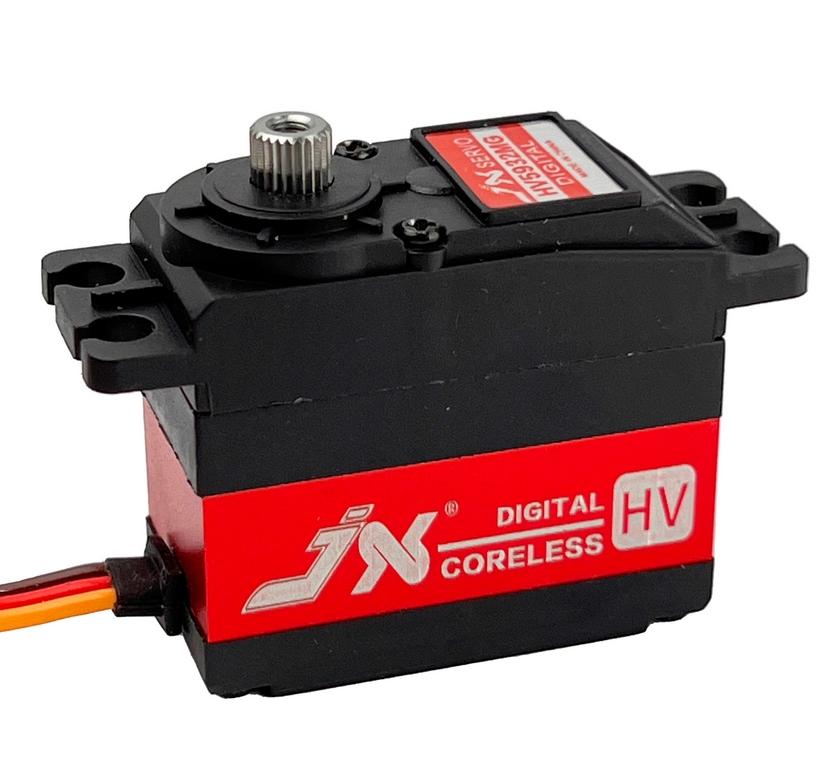

-- High performance digital high voltage coreless standard servo
-- High-precision Taiwan-made aluminium gears with hard anodizing
-- Dual ball bearings
-- CNC aluminium middle hull
SPECIFICATIONS:
Dead band: 1μs 1520μs / 330hz
Motor: coreless motor
Operating Speed (6.0V): 0.12sec/60°
Operating Speed (8.4V): 0.1sec/60°
Stall Torque (6.0V): 25.2 kg.cm (239.55oz/in)
Stall Torque (8.4V): 32.3 kg-cm (281.89 oz/in)
Dimensions: 40.5X20.5X36.5mm /1.59X0.80X1.43in
Weight: 59.3g (2.09oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
